14Y7111340 Hot Cup End Bit RH HCEB 25×209×330 5 Holes Bulldozer End Bit
Dettagli:
| Luogo di origine: | Cina |
| Marca: | MTW |
| Numero di modello: | 14Y7111340 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 5000KG |
|---|---|
| Tempi di consegna: | 6-8 settimane |
| Termini di pagamento: | T/T,L/C,D/P,D/A |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | 14Y7111340 Punta calda della tazza RH HCEB 25×209×330 Punta del bulldozer a 5 fori | Materiale: | Q355B o 30MnB |
|---|---|---|---|
| Colore: | giallo o progettato dal cliente | Numero di parte: | 14Y7111340 |
Descrizione di prodotto

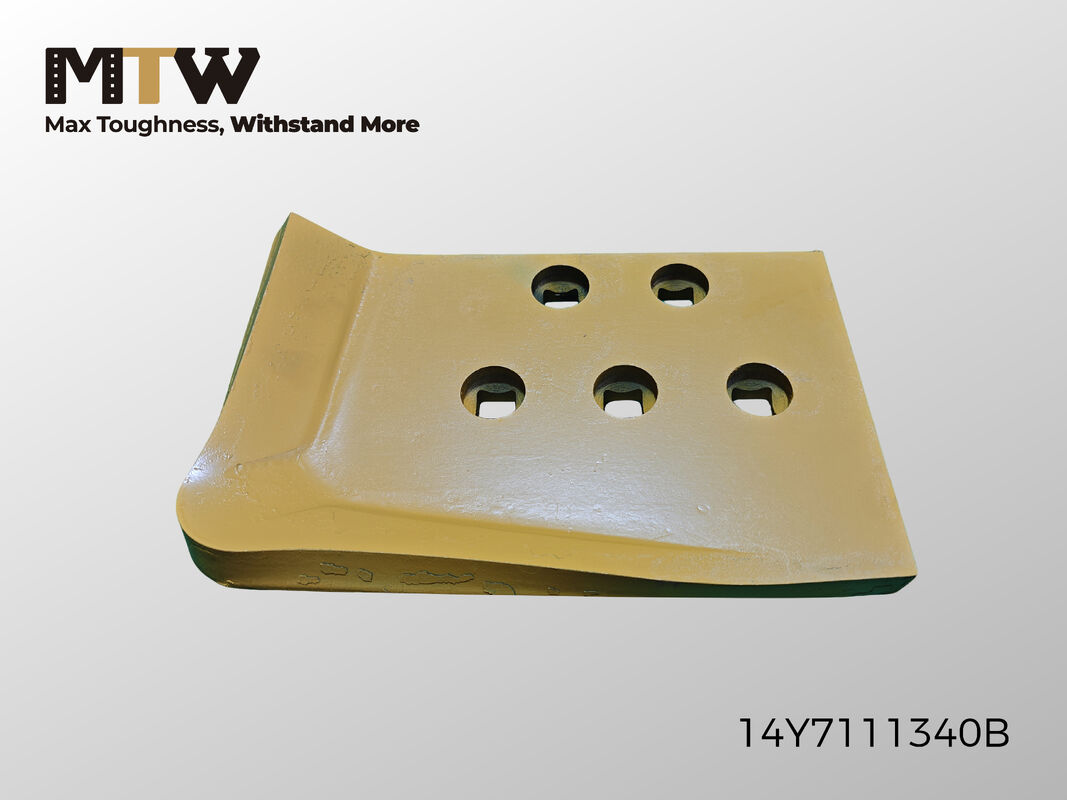

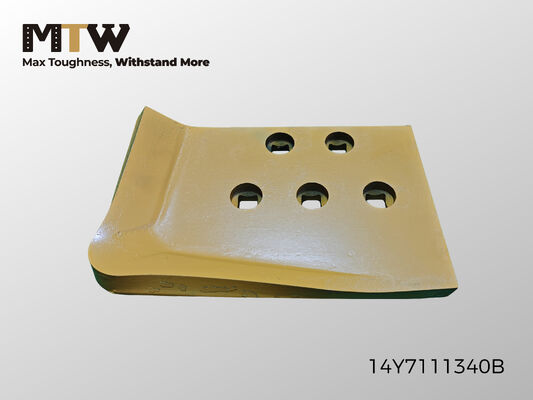

The 14Y7111340 Hot Cup End Bit RH is a heavy-duty bulldozer blade wear part designed to protect the right-hand corner of the blade during demanding earthmoving, mining, quarrying, and construction operations. Featuring a Hot Cup End Bit (HCEB) profile, it delivers excellent wear resistance, high impact strength, and long service life in harsh working environments.
With dimensions of 25 * 209 * 330 mm, a 5-hole mounting configuration, and a weight of 12.8 kg, the 14Y7111340 End Bit provides precise fitment, dependable blade protection, and cost-effective maintenance for bulldozer blades.
- Part Number: 14Y7111340
- Hot Cup End Bit RH
- Right-Hand Bulldozer End Bit
- HCEB (Hot Cup End Bit)
- 5-Hole Mounting Configuration
- Excellent Wear Resistance
- High Impact Strength
- Precision Fitment
- OEM Quality Replacement Part
- Easy Installation and Replacement
| Parameter | Specification |
|---|---|
| Part Number | 14Y7111340 |
| Blade Position | Hot Cup End Bit RH |
| Quantity Required | 1 |
| Blade Type | HCEB |
| Thickness | 25 mm |
| Width | 209 mm |
| Length | 330 mm |
| Total Holes | 5 |
| Weight | 12.8 KG |
The 14Y7111340 Hot Cup End Bit RH is suitable for:
- Bulldozers
- Mining Equipment
- Quarry Machinery
- Construction Equipment
- Earthmoving Machinery
- Road Construction
- Land Clearing Operations
- Heavy-Duty Dozing Applications
Designed to protect the right-hand blade corner from abrasion and impact while extending blade service life in demanding working conditions.
- Protects blade corners from excessive wear
- Extends blade service life
- Improves dozing efficiency
- Reduces maintenance costs
- Minimizes equipment downtime
- Enhances productivity
- OEM-quality replacement wear parts
- Precision dimensional accuracy
- Excellent fit and compatibility
- Consistent product quality
- Competitive factory-direct pricing
- Worldwide shipping available
- OEM and custom manufacturing support
The 14Y7111340 is a right-hand Hot Cup End Bit designed to protect the corner of a bulldozer blade from wear and impact during heavy-duty dozing operations.
The dimensions are 25 mm thickness * 209 mm width * 330 mm length.
The end bit features a 5-hole mounting configuration.
The unit weight is 12.8 kg.
- 14Y7111330 Hot Cup End Bit LH
- Bulldozer Cutting Edges
- Hot Cup End Bits
- Level Cut End Bits
- Bulldozer Blade Wear Parts
